SEGGER Production Tools

For production environments, we provide flash programming solutions for a variety of CPUs.

Stand-alone programmer "Flasher"

The Flasher family eases the implementation into a production site by allowing the flash programming to be triggered manually or remotely.

Software solutions for flash programming via J-Link

In addition to our hardware products, we offer software solutions that allow J-Link to be used as production tool.

The available software packages are
  • J-Flash: Stand-alone programming software for a variety of microcontrollers and external flashes
  • DFPU: Dedicated flash programming utilities for eval boards or custom hardware. NOR, NAND and SPI flashes can be supported, source code of utilities available.
  • SDK: Software development kit. Allows writing your own program and gives you full control over J-Link and your target CPU.

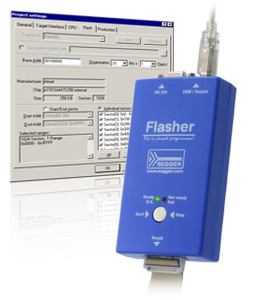

Flasher ARM

Flasher ARM
Flasher ARM is a programming tool for microcontrollers with on-chip or external Flash memory and ARM core. Flasher ARM is designed for programming flash targets with the J-Flash software or stand-alone.

Main features

  • Stand-alone JTAG/SWD programmer (Once set up, Flasher can be controlled without the use of PC program)
  • Support for ARM 7/9 and Cortex-M3
  • No power supply required, powered through USB
Learn More

Flasher RX

Flasher RX
Flasher RX is a programming tool for Renesas RX600 series microcontrollers with on-chip or external flash memory and Renesas RX core.

Main features

  • Support for Renesas RX600 series CPUs (RX610, RX621, RX62N, RX62T)
  • No power supply required, powered through USB
  • Can be used as J-Link (JTAG emulator) with a download speed (into RAM) of up to 720 Kbytes/second
  • Programming speed between 30-300 Kbytes/second depending on target hardware
Learn More

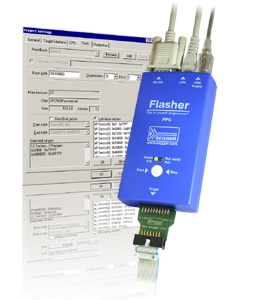

Flasher PPC

Flasher PPC
Flasher PPC is a programming tool for PowerPC based microcontrollers with on-chip or external flash memory..

Main features

  • Support for ST SPC560 devices
  • No power supply required, powered through USB
  • Host interfaces: Ethernet, USB , RS232
  • Data files can be updated via Ethernet/USB using J-Flash, via RS232 or via the mass storage functionality of Flasher PPC
  • Programming speed up to 111 Kbytes/second depending on target hardware
 Learn More

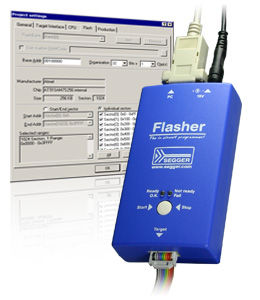

Flasher 5

Flasher 5
Flasher 5 is a programming tool for ST9 and Renesas M16C/20, M16C/62, M16C/80, M32C, R8C, R32C, M38 and M79 series of flash microcontrollers in serial mode (1.5 MByte FLASH to store target program, remote control functions for automated testers).

Main features

  • Serial (in target) programming supported
  • PC program allows batch mode processing for usage in automated test systems.
  • Once set up, Flasher can be controlled without the use of PC program
Learn More

Flasher ST7

Flasher ST7
Flasher ST7 is a programming tool for ST7 series of flash microcontrollers.

Main features

  • Small, compact housing
  • Easy to use windows program
  • 512 KByte internal Flash memory to store target program
Learn More





Flasher STM8

Flasher STM8
Flasher STM8 is a programming tool for STM8 series of flash microcontrollers.

Main features

  • All STM8 devices can be programmed
  • Integrated optical isolation between host and target system
  • Full duplex 100Mbit Ethernet interface
  • 128 MB internal flash memory to store target program
Learn More
